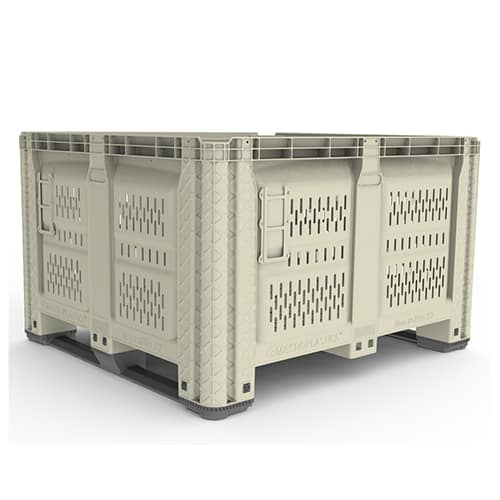

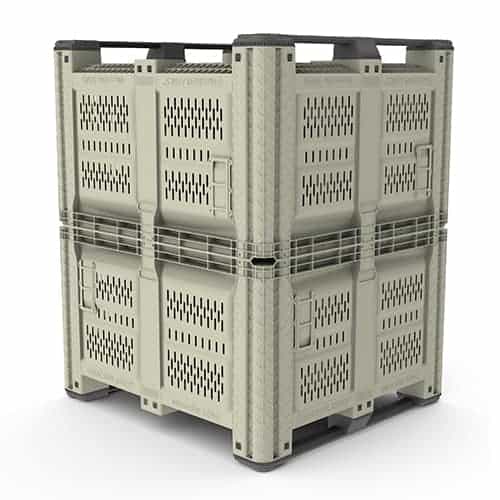

NEW! MacroBin 26NG  Learn More
MacroBin 26

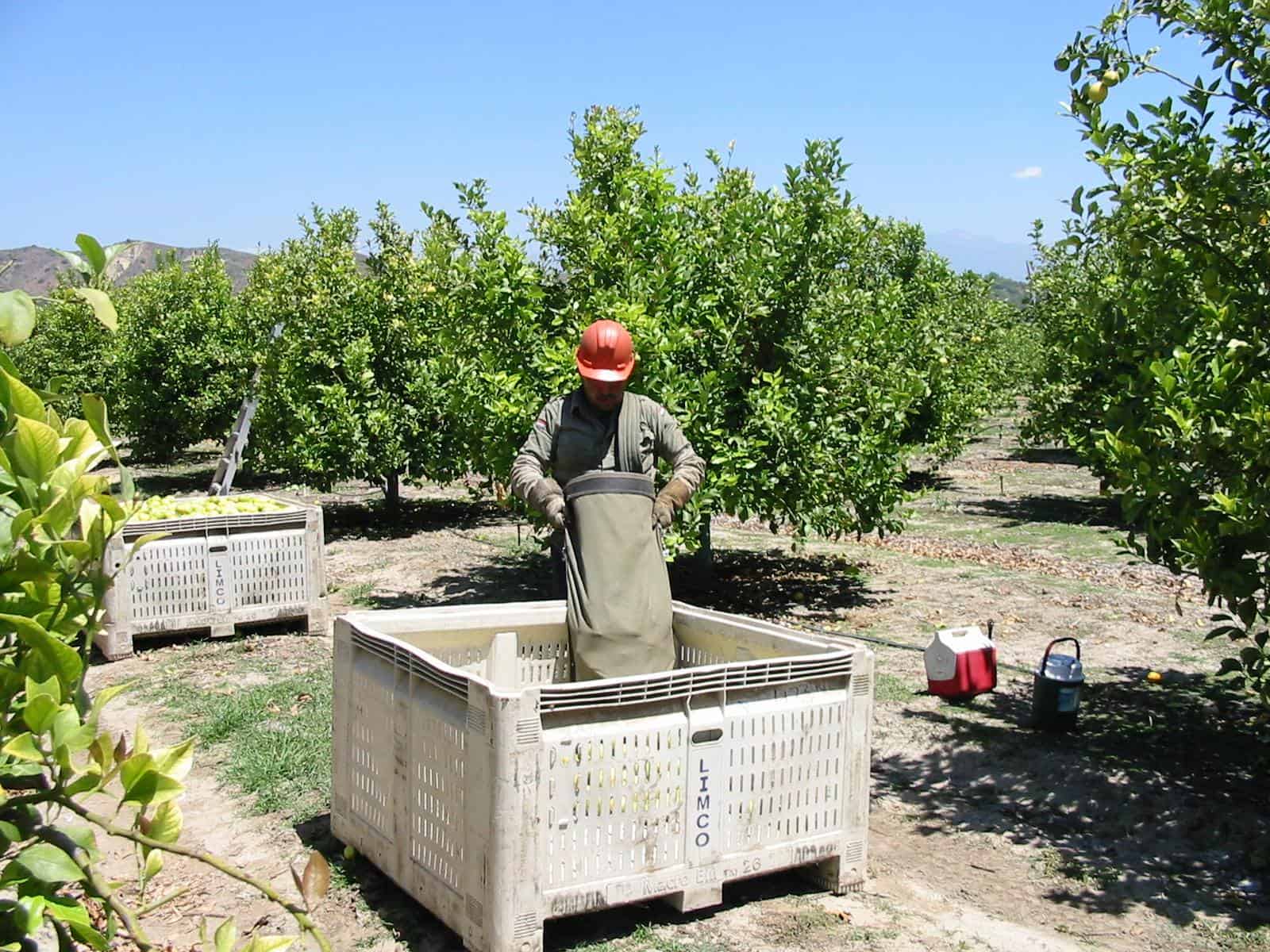

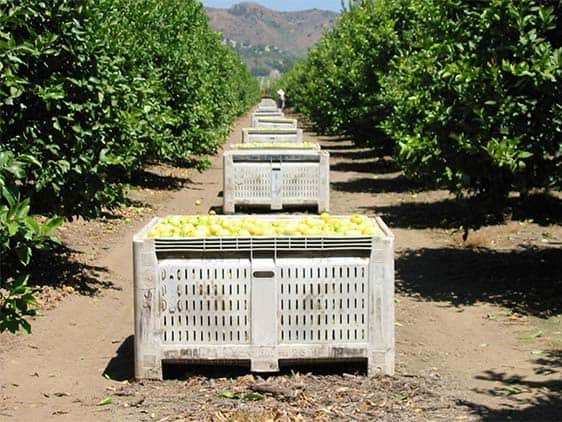

MacroBin 26 Harvest

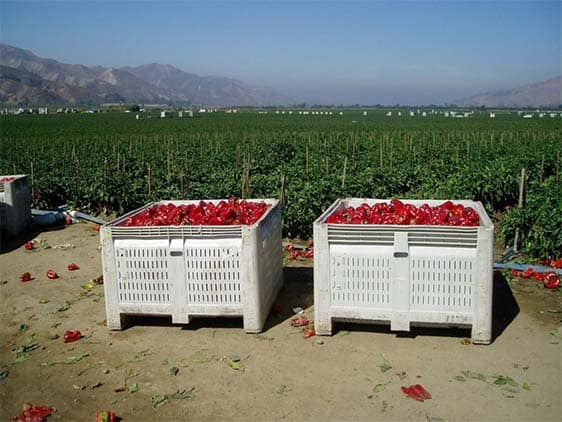

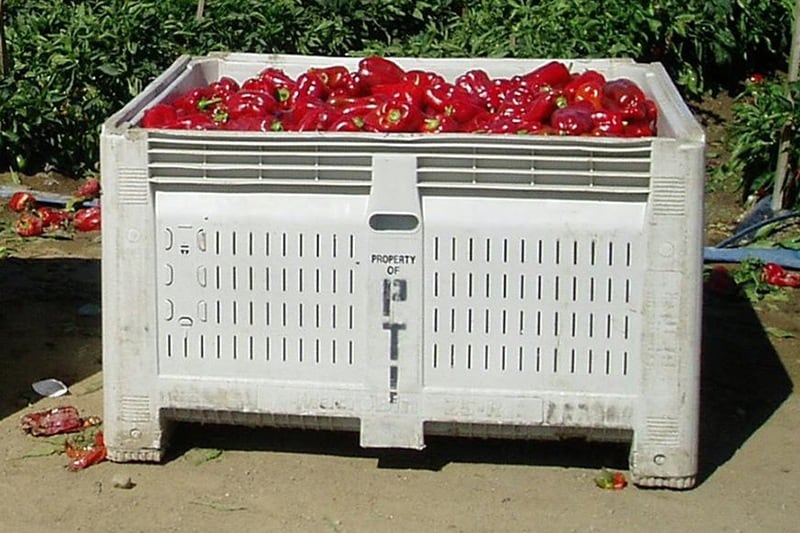

MacroBin 26 Pepper Harvest

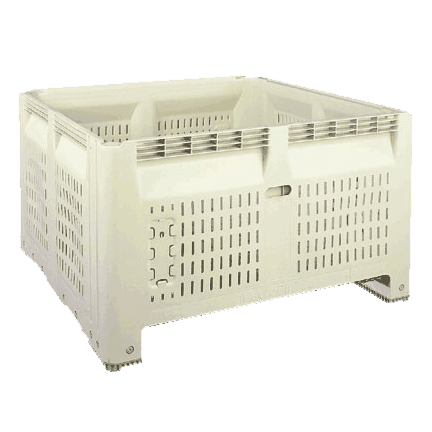

MacroBin 26-FV

The MacroBin 26 Series, IPL Macro’s most popular line of bulk harvest and storage bins, is designed with a square footprint to hold up to 1,300 pounds. With double-wall corner and center posts, and two full-length feet with a positive interlocking feature, these bins are durable, yet still lightweight and easy to handle.
Full Specs
User Guide
CAD Files
Category: Tags: , , ,

Description

Features & Benefits

  • Impact-grade plastic lasts longer, standing up to heavy day-to-day use, season after season. The molded plastic resists splintering, reducing damage to product and maintenance costs. Bin repair is inexpensive with hot air welding.

  • Lightweight construction reduces shipping costs and makes MacroBins easier to move; their interlocking foot design makes them safer to stack — up to 10 high.

  • FDA-approved materials are certified safe for use with food products, eliminating many HACCP problems associated with wood bins.

  • Ventilation slots facilitate the use of thermofogging, reduce heat absorption and cooling costs, and provide for quicker drying and degreening. Narrow vents are also available in the 26-a-FV.

  • Nonporous surfaces won’t absorb water or dehydrate your product like wood bins, and they provide a constant tare weight throughout their use.

  • Rounded corners and smooth surfaces mean fewer scuffs, abrasions, and cuts on your product. Risk of contamination is reduced because there are fewer places for unwanted particles to hide.

  • Easy-to-sanitize MacroBins keep cleaning costs to a minimum. A high-pressure wash removes most debris; a nonabrasive brush can dislodge any remaining items.

Partial List of Applications

  • Citrus
  • Tomatoes
  • Potatoes
  • Nuts
External Dimensions: 47 3/4″ (L) x 47 3/4″ (W) x 28 1/2″ (H)
Internal Dimension: 44 1/2″ (L) x 44 3/8″ (W) x 24″ (H)
Load Capacity: 1,300 lbs
Volume Capacity: 49,603 cubic inches (+/- 4%)
Tare Weight: 87.5 lbs
Maximum Stack Weight: a. 12,000 lbs
b. 13,000 lbs
c. 15,000 lbs
Fork Lift Entry: Two-way
Accessories: MacroLid
Options: Narrow Vents (3/16″ wide)
External Dimensions: 1,212.9 mm (L) x 1,212.9 mm (W) x 723.9 mm (H)
Internal Dimension: 1,130.3 mm (L) x 1,127.1 mm (W) x 609.6 mm (H)
Load Capacity: 589.7 kg
Volume Capacity: 812.8 liters (+/- 4%)
Tare Weight: 39.7 kg
Maximum Stack Weight: a. 5,443.1 kg
b. 5,896.7 kg
c. 6,803.9 kg
Fork Lift Entry: Two-way
Accessories: MacroLid
Options: Narrow Vents (3/16″ wide)

Benefits of Using MacroBins

Increased Productivity

MacroBins are easy to handle, move, and transport; the unique interlocking foot design makes them easy to align, stack, and store.

Reduced Cooling Costs

Hundreds of ventilation slots in the sides and base promote air plow and help your products cool down faster.

Reduced Bin Repair Costs

MacroBins are virtually maintenance free; repairs are easy with hot air welding.

Better Sanitation and Reduced Contamination

Smooth, nonporous surfaces are easy to sanitize and won’t trap debris, breed bacteria, or absorb chemicals like wood bins.

Improved Pack Out

Rounded corners and smooth surfaces means fewer scuffs, abrasions, and cuts on your product.

Improved Traceability and Bin Security

Several identification methods including RFID tags and attractive foil embossing are available.

Why Plastics?

Plastics improve product quality with better storage conditions and faster cooling for produce.

Why Reusable?

Reusable containers create tremendous environmental advantages by conserving materials and resources, reducing waste, and lowering packaging costs.

Notes:

All bins are ivory unless noted otherwise. Other bin colors are available at an additional cost. All bins are available with foil embossing at an additional cost. Dimensions assume tolerance of 1/8″ or 3 mm. Cubic capacities assume tolerance of 5% and tare weights assume tolerance of 4% unless noted otherwise. Maximum Stack Weight = (weight of bin contents + tare weight of bin) x number of bins in stack. Stack weights also influenced by length of storage and temperature; a = long term, ambient temperature; b = short term, ambient temperature (1 month or less); c = long term, cold storage (0º F to 35º F or -17ºC to 2º C). Ambient temperature approximately equal to 75º F (23.9º C) . Please contact Macro Plastics if storage temperature is below 0º F (-17º C).Please refer to the MacroBin User Guide for information on the safe transportation, stacking and handling of MacroBins. Click here for the latest version of the User Guide. Data is subject to change. Confirm with specification sheets.
