MacroBin 32NG

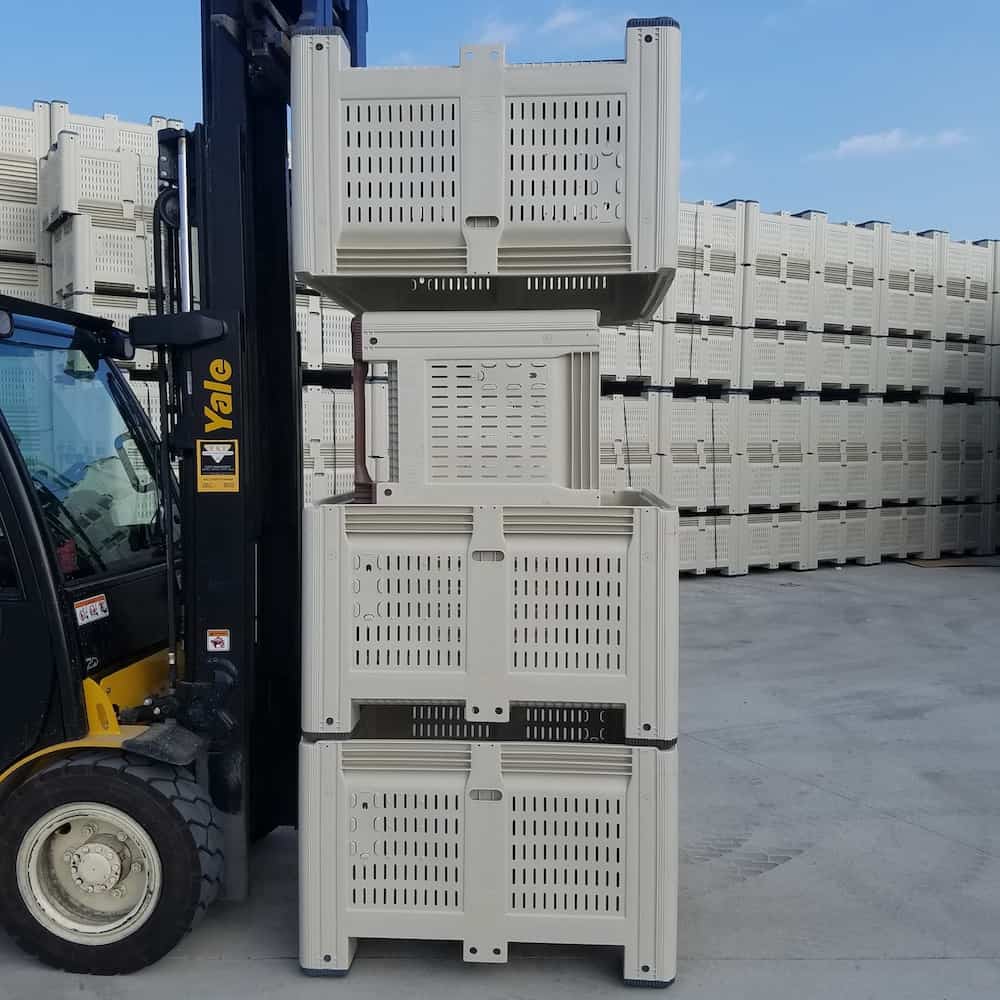

The MacroBin 32NG (Next Generation) is a large capacity rectangular bin with 4-way entry. The bin features newly engineered reinforced columns and feet that improve impact resistance to reduce damage during tough harvests. An original cross pattern design in the base further reduces damage by decreasing base line deflection. Drain holes have been added to the rim for easier and quicker drainage. When empty, three bins can nest in the space of two for greater return-trip shipping efficiency and storage capacity.

Features & Benefits

  • Impact-grade copolymer
  • Lightweight construction
  • FDA-approved materials
  • Ventilation slots
  • Nonporous surfaces
  • Rounded corners and smooth surfaces
  • Easy-to-sanitize

Partial List of Applications

  • Apples
  • Avocados
  • Peppers
Full Specs
User Guide
Category: Tags: , ,

Description

External Dimensions: 44.75” (L) x 48.31” (W) x 29.93” (H)
Internal Dimension: 40” (L) x 44.75” (W) x 23.87” (H)
Load Capacity: 1,300 lbs
Volume Capacity: 48,000 cubic inches
Tare Weight: 67.5 lbs (basket)
75 lbs (long foot)
Maximum Stack Weight: a. 8,500 lbs (long term, ambient)
b. 9,500 lbs [short term (<1 month), ambient] c. 12,000 lbs [long term, cold storage (0° F to 35° F)]
Fork Lift Entry: Four-way
Accessories:
Options: Customer ID with RFID tags or foil embossing.
Foot orientation
label holders
External Dimensions: 1136.65 mm (L) x 1227.07 mm (W) x 760.22 mm (H)
Internal Dimension: 1016 mm (L) 1136.65 mm (W) x 606.3 mm (H)
Load Capacity: 589.67 kg
Volume Capacity: 786.58 liters
Tare Weight: 30.62 kg (basket)
34.02 kg (long foot)
Maximum Stack Weight: a. 3,855.53 kg (long term, ambient)
b. 4,309.12 kg [short term (<1 month), ambient] c. 5,443.12 kg [long term, cold storage (0° F to 35° F)]
Fork Lift Entry: Four-way
Accessories:
Options: Customer ID with RFID tags or foil embossing.
Foot orientation
label holders

Why Plastics?

Plastics improve product quality with better storage conditions and faster cooling for produce.

Why Reusable?

Reusable containers create tremendous environmental advantages by conserving materials and resources, reducing waste, and lowering packaging costs.

Notes:

All bins are ivory unless noted otherwise. Other bin colors are available at an additional cost. All bins are available with foil embossing at an additional cost. Dimensions assume tolerance of 1/8″ or 3 mm. Cubic capacities assume tolerance of 5% and tare weights assume tolerance of 4% unless noted otherwise. Maximum Stack Weight = (weight of bin contents + tare weight of bin) x number of bins in stack. Stack weights also influenced by length of storage and temperature; a = long term, ambient temperature; b = short term, ambient temperature (1 month or less); c = long term, cold storage (0º F to 35º F or -17ºC to 2º C). Ambient temperature approximately equal to 75º F (23.9º C) . Please contact Macro Plastics if storage temperature is below 0º F (-17º C).Please refer to the MacroBin User Guide for information on the safe transportation, stacking and handling of MacroBins. Click here for the latest version of the User Guide. Data is subject to change. Confirm with specification sheets.

Additional information

Dimensions 10 × 10 × 10 cm
Applications

Blueberries, Cherries, Cranberries
