Hybrid 1212

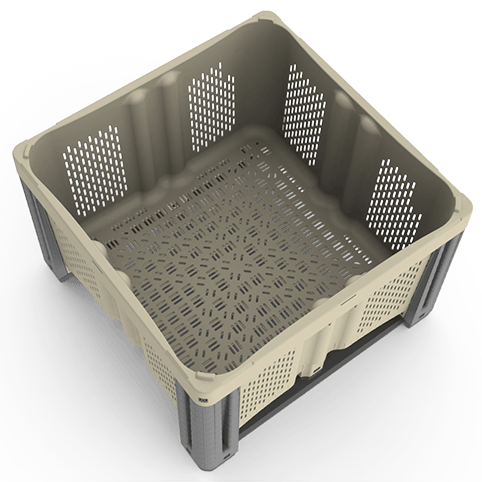

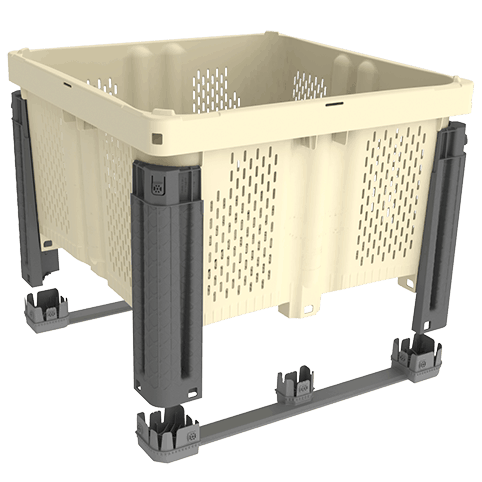

The Hybrid 1212 is exceptionally strong with a load capacity of 1,102 lbs (500 kg), perfect for the toughest harvest, handling, and storage applications. Ventilation can be configured for the specific application or can be completely solid. Shown here is the fully ventilated version. Our new innovative columns are designed to act as bumpers, absorbing and recoiling on impact to prevent breakage, greatly increasing the bin’s durability. This extremely durable bin can also be stacked high with heavy loads, secured by lugs that prevent the bottom of one bin from coming into contact with the contents of the bin below it. Column and feet inserts are easily locked into place to create an ultra-strong agricultural bin.

Full Specs
User Guide
CAD FILES
Category: Tag:

Description

Features & Benefits

  • Softer Walls with all rounded edges, and less sharp angles; better than any traditional plastic bin

  • Innovative perimeter geometry keeps walls from bowing out
  • Smart design keeps base from deflecting, and protects content
  • Wall taper prevents walls from one bin crashing against the walls of any adjacent bins. We call this the “Bruise Buffer Zone”
  • Smooth soft surfaces to protect fruit
  • Near 10% more ventilation than traditional plastic bins
  • Durable FDA-approved plastic
  • New column design absorbs and recoils on impact, instead of resisting impact and breaking

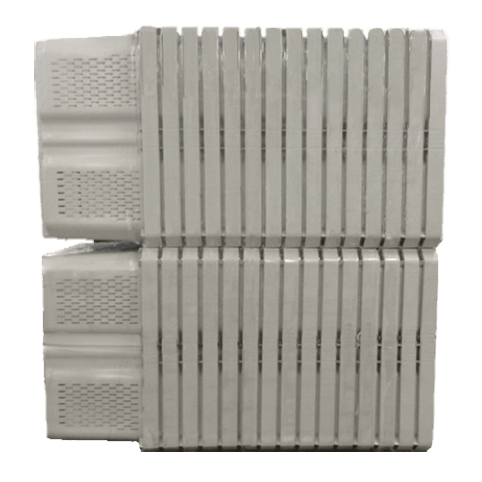

  • In a stack, the top bin doesn’t nest into the bottom bin. Instead, it is secured by lugs, which allows full use of internal volume, and keeps the feet and strap of the top bin away from the contents below

Load Capacity: 1,102 lbs
Volume Capacity: 47,689 cubic inches
Tare Weight: 69.9 lbs
Maximum Stack Weight: 11,023lbs
Molding Process: Injection Molding
Material: Virgin Polypropylene Resin
Approval: FDA-regulated material
Ventilation Slots: Customizable, from fully vented to completely solid
Fork Lift Entry: 2-Way, 4-Way with 2 Straps, or 4-Way with No Straps
External Dimensions: 47.24” (L) x 47.24” (W) x 31.1” (H)
Options: Color Options, Stickers, Solid Injection Lid
Internal Dimensions: Length: 45.29″
Width: 45.29″
Minimal Clearance: 39.92″
Load Capacity: 500 kg
Volume Capacity: 780 liters
Tare Weight: 31.7 kg
Maximum Stack Weight: 5,000 kg
Molding Process: Injection Molding
Material: Virgin Polypropylene Resin
Approval: FDA-regulated material
Ventilation Slots: Customizable, from fully vented to completely solid
Fork Lift Entry: 2-Way, 4-Way with 2 Straps, or 4-Way with No Straps
External Dimensions: 1,200 mm (L) x 1,200 mm (W) x 790 mm (H)
Options: Color Options, Stickers, Solid Injection Lid
Internal Dimensions: Length: 1150.5 mm
Width: 1150.5 mm
Minimal Clearance: 1014 mm

Why Plastics?

Plastics improve product quality with better storage conditions and faster cooling for produce.

Why Reusable?

Reusable containers create tremendous environmental advantages by conserving materials and resources, reducing waste, and lowering packaging costs.

Notes:

All bins are ivory unless noted otherwise. Other bin colors are available at an additional cost. All bins are available with foil embossing at an additional cost. Dimensions assume tolerance of 1/8″ or 3 mm. Cubic capacities assume tolerance of 5% and tare weights assume tolerance of 4% unless noted otherwise. Maximum Stack Weight = (weight of bin contents + tare weight of bin) x number of bins in stack. Stack weights also influenced by length of storage and temperature; a = long term, ambient temperature; b = short term, ambient temperature (1 month or less); c = long term, cold storage (0º F to 35º F or -17ºC to 2º C). Ambient temperature approximately equal to 75º F (23.9º C) . Please contact Macro Plastics if storage temperature is below 0º F (-17º C).Please refer to the MacroBin User Guide for information on the safe transportation, stacking and handling of MacroBins. Click here for the latest version of the User Guide. Data is subject to change. Confirm with specification sheets.

Additional information

Dimensions 10 × 10 × 10 cm
Applications

Blueberries, Cherries, Cranberries
